The new WOLFF 21 FX Family - three cranes, one class, and many advantages.
Maximum flexibility, cost-effectiveness, and availability in the popular 141 to 200-tm class. That's what the three new flat-top crane models WOLFF 6021 FX, 6521 FX, and 7021 FX with 8, 10.5, or 12.5 t maximum lifting capacity stand for. Their common features: the same components and a tip load capacity of 2.1 tonnes.
Controlling load sway
The WOLFF High-Speed Positioning System - more safety and efficiency on the construction site
The new assistance system makes it possible to move loads without any sway and to position them with millimeter precision. This is possible due to sensors on the trolley and hook block connected to the crane control system. They register the rope movements and automatically adjust the movement and speed of the crane accordingly, almost entirely reducing load sway.
Impressive performance in the XXL class
The WOLFF 8076 Compact - top with a compact top.
Thanks to its low tower top and 4-chord jib design, the WOLFF 8076 Compact offers a maximum lifting capacity of 40 tonnes and a tip load capacity of 7.6 tonnes at a jib radius of 80 meters. And that as a pure 2-fall crane. This makes it the strongest WOLFF saddle jib crane and the best in class in the 800-tm range.

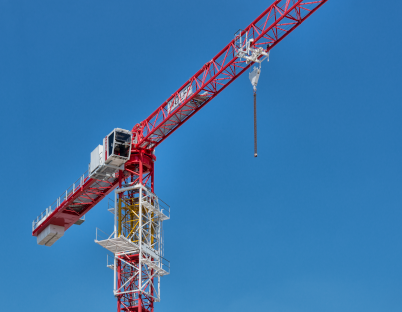

The WOLFF 7534 Clear - simply, good.
Launched in 2016, established on construction sites in Europe, and also popular in North America as a US version: WOLFKRAN's largest Clear model, available as an 8.5- and 16.5-tonne version, each with a 45 kW or 75 kW hoisting winch and a tip load of 3.4 tonnes with a maximum reach of 75 meters. Typical for WOLFF Clear cranes: the clean design of the tower top and easy access to all components.
The WOLFF 235 B – superior in terms of assembly and maintenance.
Proven load capacities, fast working speeds, and well-designed assembly features. The WOLFF 235 B luffing jib crane is ideal for inner-city construction sites with high volumes of concreting work and tight erection schedules. On show at bauma with the transition tower section TVR 2015 connecting it to the new 1.5-meter tower system TV 15.
Remote Service Support
The new service app WOLFF Assist - always at your side.
Expert assistance whenever and wherever you need it. Using a smartphone, tablet or Smart Glasses, the local service technician transmits his field of vision to a remote WOLFFKRAN expert, who provides assistance via audio, video, chat, and screen sharing.
Designed for extreme conditions
The new XXL tower section TV 60 – 6 x 6 meters, 288 screws, 24 bolts, 1.5 trucks.
In service since 2020 on the Swiss Grimsel Pass, it serves as a strong base for two 90-meter freestanding WOLFF 1250 B luffers - defying the extreme weather conditions and loads exerted by ice, snow, and wind 1900 meters above sea level.
WOLFFKRAN is Family!
In keeping with our motto, we welcome you to bauma 2022 and look forward to presenting the first WOLFF FX crane family.

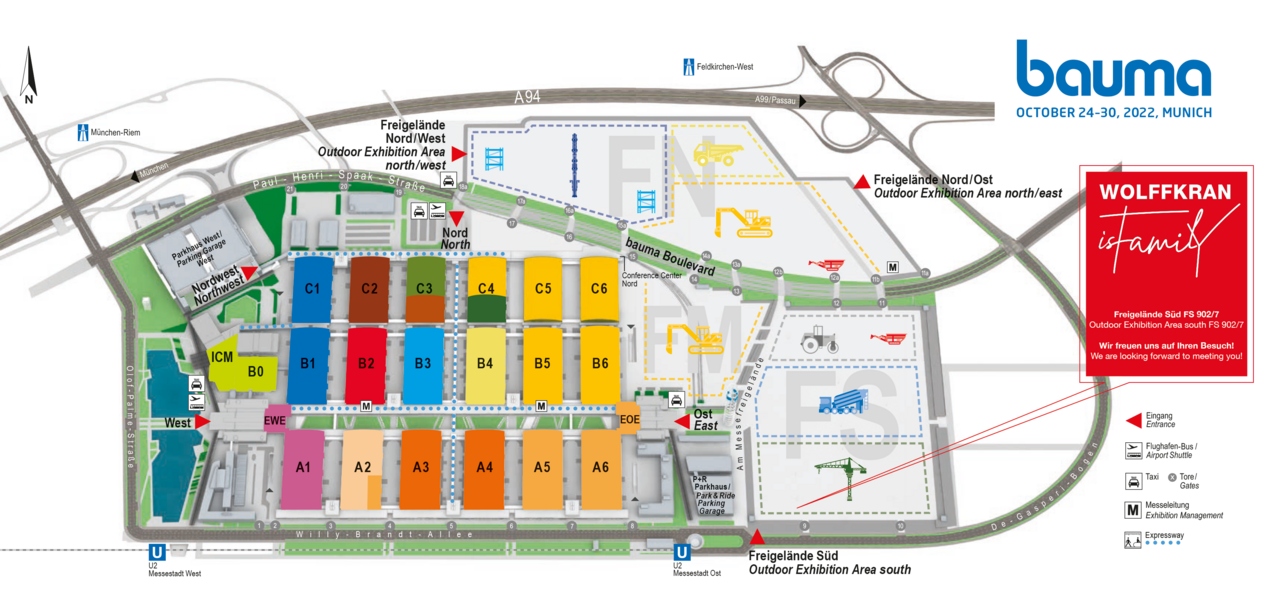

As always, you will find us in the Outdoor Area South, Booth FS 902/7.
Book your appointment now!
Plan your trade show visit and arrange a meeting with us at bauma 2022 now. The WOLFFKRAN trade show team is looking forward to your request.
WOLFFKRAN is Family
Get to know the WOLFFKRAN exhibition team. You will even find some short personal stories and anecdotes behind some of the photos of our team members.
Mohamed Abou El Ezz
French, German, English
German, English, French
Czech, German, English
Czech, German, English
German, English, Polish
German, English, French, Spanish
German, English, French
Dr. Peter Schiefer
Wouter van Loon
Deutsch, Englisch, Niederländisch
German, English, Dutch
German, English, French
This year we will again present a variety of new products and innovations.

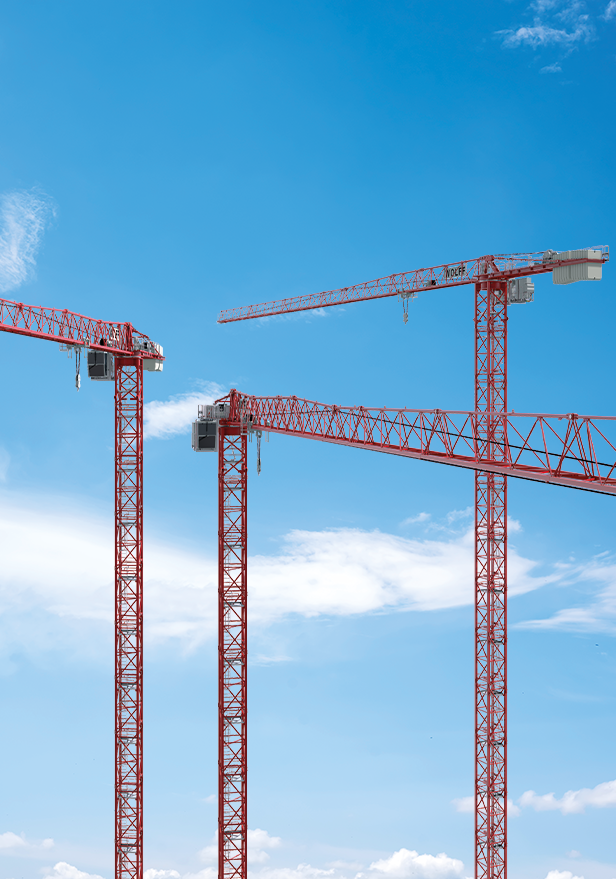

WOLFF 21 FX-Family
New and simply smart.
At bauma 2022, WOLFFKRAN is presenting two of its three new flattop cranes in the 141 to 200-tm class: the WOLFF 7021 FX and the WOLFF 6021 FX. The WOLFF 6521 FX completes the crane family with a tip load capacity of 2.1 tonnes.
What makes the trio a family? The use of numerous identical components providing maximum flexibility, short delivery times, and attractive pricing in this crane class. On top of that, the family concept offers advantages in terms of spare parts stocking and training of the erections and service teams.
Whether with 60-, 65-, or 70-meter jib; with 8.5, 10.5, or 12.5 tonnes maximum lifting capacity; with a 1.5- or 2.0-meter tower connection: the WOLFF FX 21 crane family offers a suitable crane for every situation.
The use of an identical hoisting rope, a trolley and hook block of the same design, as well as many well-thought-out transport and assembly features round off the new crane family.

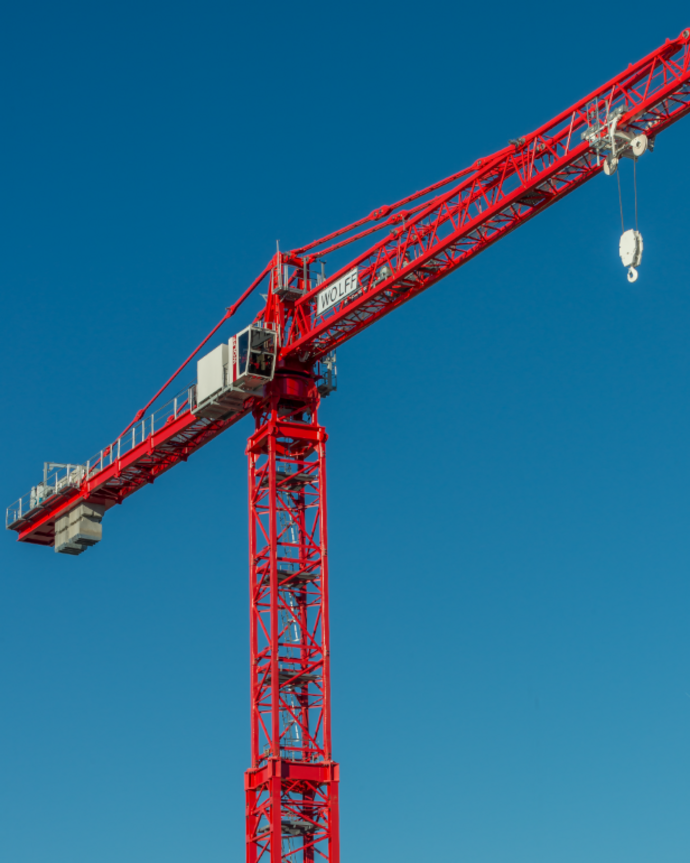

WOLFF 8076 Compact
Because large does not have to be uneconomical.
WOLFFKRAN presents its first saddle jib crane in the 800 tm class at bauma 2022.
As a pure 2-fall crane, the WOLFF 8076 Compact boasts an impressive maximum load capacity of 40 tonnes and a tip load capacity of 7.6 tonnes at 80 meters. This not only makes it the strongest WOLFF saddle jib crane, but also the best in its class.
Despite its enormous lifting capacity, the XXL crane impresses with a compact design and economical assembly weights. This is made possible by the use of a low tower top and the 4-chord design of the first three jib sections.
Whether 100 meters freestanding or in a pack with other WOLFFs, the WOLFF 8076 Compact can do both. It features a 2.9-meter tower connection and a powerful 132 kW hoisting winch. The jib can be extended in 5-meter increments up to a 80 meters and the counter jib can be shortened from 30.3 to 22.3 meters depending on the jib length.
LIVE AT BAUMA

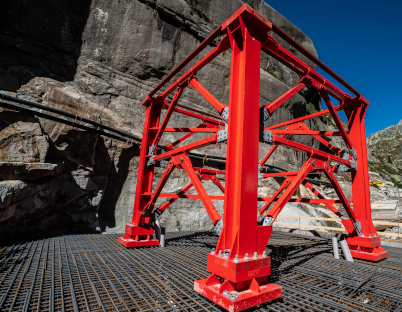

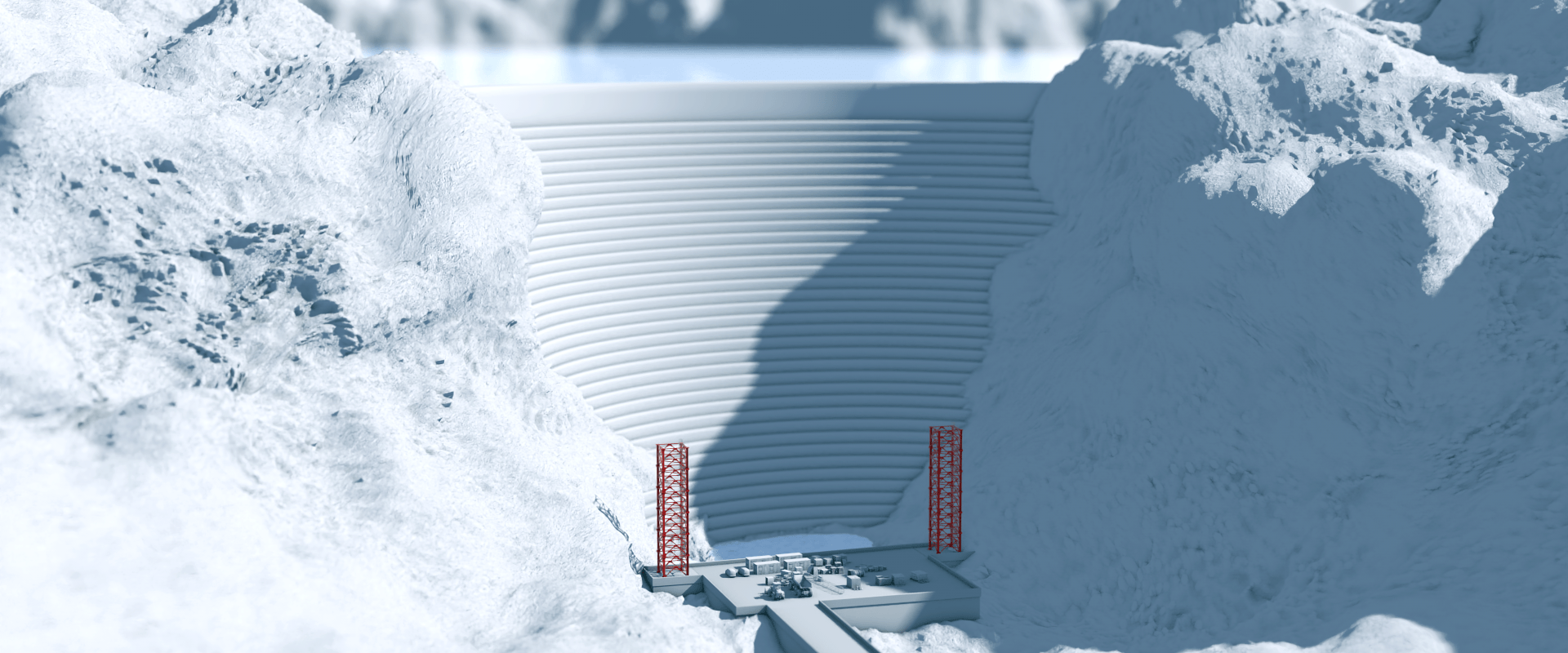

The XXL tower section TV 60 with an outer dimension of 6 x 6 meters.
Shown here in action on the Swiss Grimsel Pass.
The brand new reinforced TV 15 tower section with an exterior dimension of 1.5 x 1.5 meters. Ideal for high freestanding heights in elevator shafts.

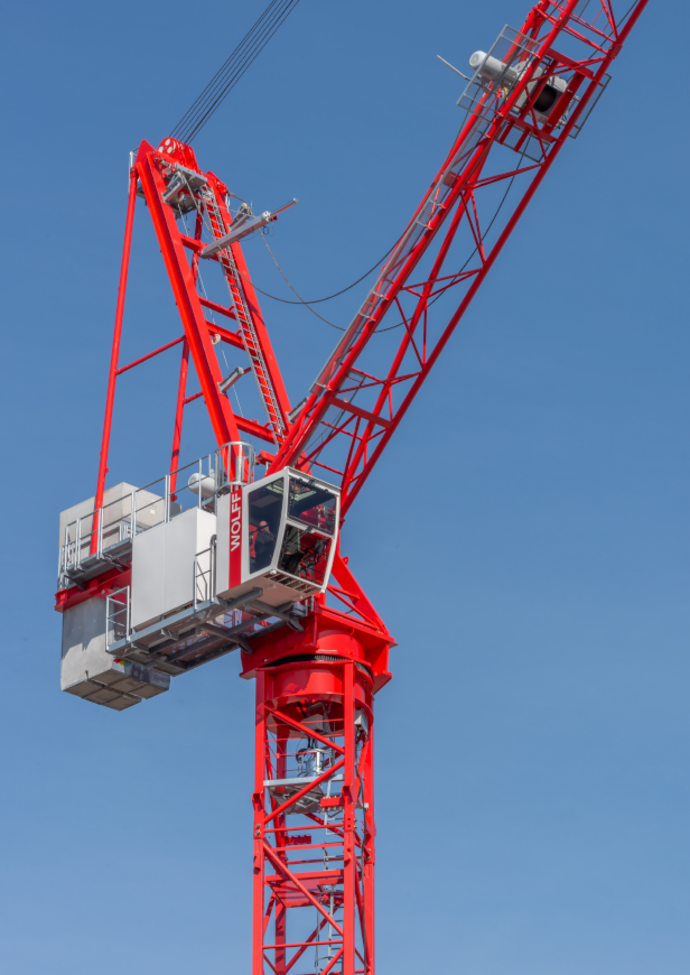

WOLFF 235 B
Time is money. This also goes for the crane erection, in particular on downtown job sites.
The WOLFF 235 B luffer is based on the proven load capacities of its predecessor. It excels on high-rise construction sites with a significant amount of reinforced concrete. Optimized for use with a 50-meter jib, it outperforms its competitors with a tip load capacity of 4.1 tonnes. The efficient 60 kW hoisting winch ensures a high turnaround with working speeds of up to 130 m/min.
Yet the real strength of the latest WOLFF luffing jib crane lies in its well-thought-out assembly features, such as the position of the hoisting winch in the boom. Or its low assembly weights, thanks to which a WOLFF 235 B with a 40-meter jib can completely assemble another of its kind. Or the possibility of transporting and assembling the tower top together with the luffing gear and pre-reeved luffing rope as a single unit.
Another city highlight: Thanks to the new TVR 2015 connecting frame, the WOLFF 235 B can now also fit comfortably in elevator shafts on the new 1.5-meter TV 15 tower system.

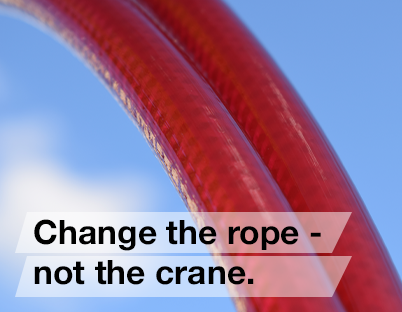

chaRope®: The only crane fiber rope that can replace a steel rope 1:1.
Rope specialist TROWIS and WOLFFKRAN are presenting the new chaRope high-performance fiber rope at bauma 2022. Compared to conventional synthetic crane ropes, it offers the advantage that it can be used 1:1 instead of a steel rope - without having to make any modifications to the crane.
This is made possible by the unique fiber composite design of the rope cover, consisting of an inner and a functionally different outer synthetic matrix, which embeds a fiber blend of high-strength and elastic fibers in each other. As a result, the rope cover is not only extremely abrasion-resistant but also significantly thinner than braided covers of conventional fiber ropes. In addition, the cover is monolithic, i.e. seamlessly impermeable. As a result, moisture can't penetrate through to the inside of the rope, nor can lubricants or fiber abrasions leak through to the outside.
For the market launch in August 2023, chaRope fiber ropes will be available with diameters of 12 and 16 millimeters and all WOLFF Clear cranes, the new WOLFF 21 FX cranes and the WOLFF 8033.16 Cross will be offered with either steel or fiber rope.
At bauma, the new chaRope® fiber rope is showcased on the new WOLFF 6021 FX.
Discover the new WOLFF Assist service app yourself at our trade show booth
Transmit your field of vision directly to one of our service experts via Smart-Glasses (data goggles). They will support you via video call, chat, and screen sharing in solving the problem. Experience for yourself how easy and intuitive it is to use the WOLFF Assist app.
WOLFF Assist also works on any mobile device as no software needs to be installed. Simply log in securely and off you go.

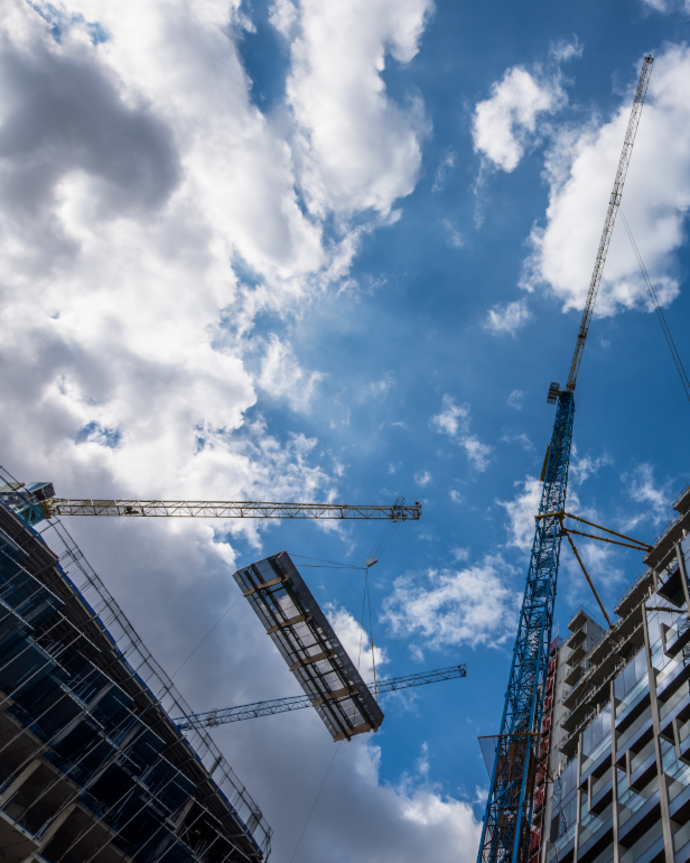

New High-Speed-Positioning-System stops load sway.
It takes a lot of experience on the part of the crane operator to move a load without sway across the construction site and to set it down on the spot. Here, the new WOLFF High-Speed-Positioning-System offers support. With the electronic assistance system, the crane operator no longer controls the crane, whose movement causes the load to swing, but rather the load itself.
This is made possible by two battery-powered sensors attached to the trolley and the crane hook block. Connected to a control unit in the switch cabinet, these detect the movements of the rope and automatically adjust the movement and speed of the crane accordingly. Even loads already swinging can be brought to a standstill in this way.
The risk of accidents and damage caused by swaying loads is significantly reduced. The anti-collision system is also optimized, as not only the crane but also the load is automatically stopped within the working area limitation. In addition, the crane can be controlled much easier from the ground.
Daily live demonstration at the booth at 11:00, 13:30 and 15:30.
